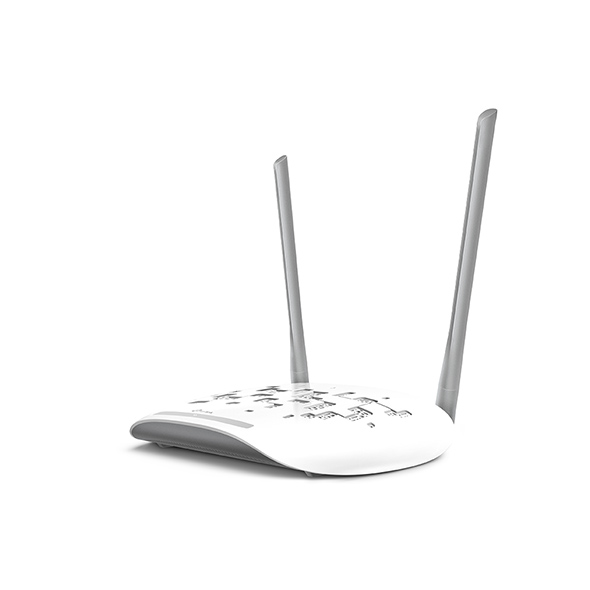

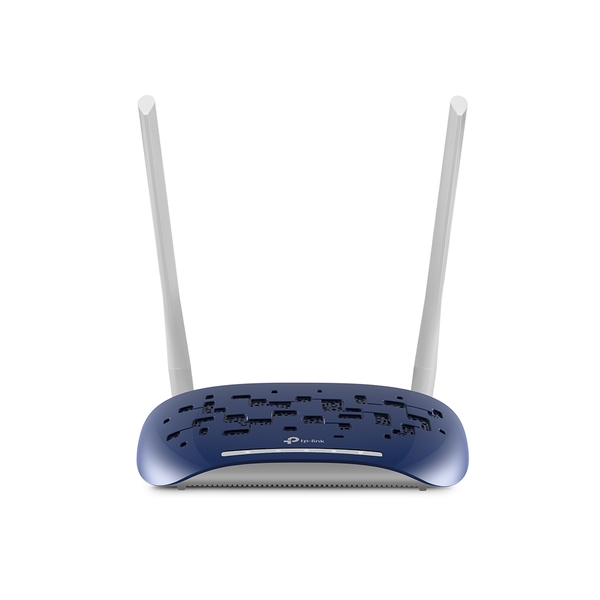

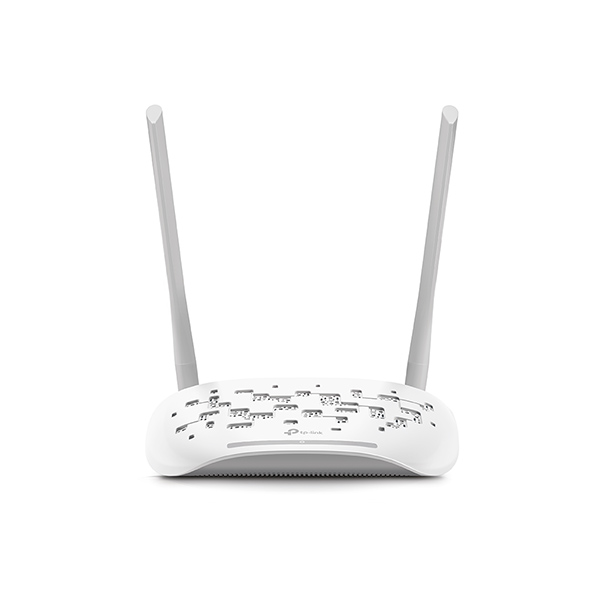

TP-Link TD-W9960 300Mbps WiFi VDSL/ADSL modem router 4xFE LAN
300Mbps Wireless N VDSL/ADSL Modem RouterTD-W9960Popis*Versatile Connectivity – With DSL and LAN/WAN ports, TD-W9960 is fully compatible with the VDSL2/ADSL2+/ADSL2/ADSL standards and also works with fiber/cable access.*Boosted Speeds – Superfast VDS...
Zobrazit více
0% (0 hodnocení)
1 028 Kč
vložit do košíku
Skladem na prodejně
| katalogové číslo: | at_517214252 |
| EAN: | 6935364081966 |
| výrobce: | TP-LINK |
| cena bez DPH: | 849,59 Kč |
| cena vč. DPH: | 1 028 Kč |
popis
parametry
soubory a odkazy
diskuze
300Mbps Wireless N VDSL/ADSL Modem Router
TD-W9960
Popis
*Versatile Connectivity – With DSL and LAN/WAN ports, TD-W9960 is fully compatible with the VDSL2/ADSL2+/ADSL2/ADSL standards and also works with fiber/cable access.
*Boosted Speeds – Superfast VDSL broadband speeds of up to 100Mbps together with 300Mbps Wi-Fi.
*Maximized Range – Powerful external antennas provide far-reaching wireless coverage in every direction.
*Effortless Management – Set up in minutes with the powerful Tether app or intuitive web interface and manage the network from anywhere.
Technická specifikace
HARDWARE FEATURES
Interface
*3 10/100Mbps RJ45 LAN Ports
*1 10/100Mbps RJ45 LAN/WAN Port
*1 RJ11 Port
Button
*WPS Button
*RESET Button
*Power ON/OFF Button
External Power Supply
*9VDC/0.6A
IEEE Standards
*IEEE 802.3, 802.3u
VDSL2 Standards
*ITU-T G.993.2
*ITU-T G.993.5 (G.vector)
*ITU-T G.998.4 (G.INP)
Dimensions ( W x D x H )
*181.6 x 129.7 x 36.2mm
Antenna Type
*Omni directional, Fixed
Antenna Gain
*2 x 5dBi
WIRELESS FEATURES
Wireless Standards
*IEEE 802.11b, 802.11g, 802.11n
Frequency
*2.400-2.4835GHz
Transmit Power
*<20dBm(EIRP)
Wireless Security
*64/128-bit WEP
*WPA/WPA2
*WPA-PSK/WPA-PSK2 Encryptions
*Wireless MAC Filtering
SOFTWARE FEATURES
Quality of Service
*WMM, Bandwidth Control (IP QoS)
Security
*NAT Firewall, SPI Firewall, Denial of Service (DoS), SYN Flooding, Ping of Death, Access Control, Service Filtering, IP and MAC Address Binding
Operating Modes
*VDSL/ADSL Modem Router, Wireless Router,
Management
*Web Based Configuration (HTTP), Remote management, CWMP(TR-069), Web Based Firmware Upgrade, Diagnostic Tools
Port Forwarding
*Virtual Server, Port Triggering, DMZ, ALG, UPnP
VPN Pass-Through
*PPTP, L2TP, IPSec Passthrough
Protocols
*Supports IPv4 and IPv6
ATM/PPP Protocols
*PPPoE (RFC2516), PPPoA (RFC 2364), MERIPoE (RFC 1483 Routed), IPoA (RFC1577/2225), Bridge (RFC1483 Bridge)
Advanced Features
*Parental Controls, Network Address Translation(NAT), Port Mapping(Grouping), Static Routing, RIP v1/v2(optional), DNS Relay, DDNS, IGMP V1/V2/V3
APP
*Tether App
OTHERS
Certification
*CE, RoHS
Package Contents
*TD-W9960
*External DSL Splitter
*RJ-11 DSL Cable
*RJ-45 Ethernet Cable
*Quick Installation Guide
*Power Adapter
System Requirements
*Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7, 8, 8.1, 10,
*Mac OS, NetWare, UNIX or Linux
*Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other
*Java-enabled browser
*Subscription with an internet service provider (for internet access)
Environment
*Operating Temperature: 0?~40?(32?~104?)
*Storage Temperature: -40?~70?(-40?~158?)
*Operating Humidity: 10%~90% non-condensing
*Storage Humidity: 5%~90% non-condensing
TD-W9960
Popis
*Versatile Connectivity – With DSL and LAN/WAN ports, TD-W9960 is fully compatible with the VDSL2/ADSL2+/ADSL2/ADSL standards and also works with fiber/cable access.
*Boosted Speeds – Superfast VDSL broadband speeds of up to 100Mbps together with 300Mbps Wi-Fi.
*Maximized Range – Powerful external antennas provide far-reaching wireless coverage in every direction.
*Effortless Management – Set up in minutes with the powerful Tether app or intuitive web interface and manage the network from anywhere.
Technická specifikace
HARDWARE FEATURES
Interface
*3 10/100Mbps RJ45 LAN Ports
*1 10/100Mbps RJ45 LAN/WAN Port
*1 RJ11 Port
Button
*WPS Button
*RESET Button
*Power ON/OFF Button
External Power Supply
*9VDC/0.6A
IEEE Standards
*IEEE 802.3, 802.3u
VDSL2 Standards
*ITU-T G.993.2
*ITU-T G.993.5 (G.vector)
*ITU-T G.998.4 (G.INP)
Dimensions ( W x D x H )
*181.6 x 129.7 x 36.2mm
Antenna Type
*Omni directional, Fixed
Antenna Gain
*2 x 5dBi
WIRELESS FEATURES
Wireless Standards
*IEEE 802.11b, 802.11g, 802.11n
Frequency
*2.400-2.4835GHz
Transmit Power
*<20dBm(EIRP)
Wireless Security
*64/128-bit WEP
*WPA/WPA2
*WPA-PSK/WPA-PSK2 Encryptions
*Wireless MAC Filtering
SOFTWARE FEATURES
Quality of Service
*WMM, Bandwidth Control (IP QoS)
Security
*NAT Firewall, SPI Firewall, Denial of Service (DoS), SYN Flooding, Ping of Death, Access Control, Service Filtering, IP and MAC Address Binding
Operating Modes
*VDSL/ADSL Modem Router, Wireless Router,
Management
*Web Based Configuration (HTTP), Remote management, CWMP(TR-069), Web Based Firmware Upgrade, Diagnostic Tools
Port Forwarding
*Virtual Server, Port Triggering, DMZ, ALG, UPnP
VPN Pass-Through
*PPTP, L2TP, IPSec Passthrough
Protocols
*Supports IPv4 and IPv6
ATM/PPP Protocols
*PPPoE (RFC2516), PPPoA (RFC 2364), MERIPoE (RFC 1483 Routed), IPoA (RFC1577/2225), Bridge (RFC1483 Bridge)
Advanced Features
*Parental Controls, Network Address Translation(NAT), Port Mapping(Grouping), Static Routing, RIP v1/v2(optional), DNS Relay, DDNS, IGMP V1/V2/V3
APP
*Tether App
OTHERS
Certification
*CE, RoHS
Package Contents
*TD-W9960
*External DSL Splitter
*RJ-11 DSL Cable
*RJ-45 Ethernet Cable
*Quick Installation Guide
*Power Adapter
System Requirements
*Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7, 8, 8.1, 10,
*Mac OS, NetWare, UNIX or Linux
*Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other
*Java-enabled browser
*Subscription with an internet service provider (for internet access)
Environment
*Operating Temperature: 0?~40?(32?~104?)
*Storage Temperature: -40?~70?(-40?~158?)
*Operating Humidity: 10%~90% non-condensing
*Storage Humidity: 5%~90% non-condensing
