D-Link GO-SW-5G 5-Port GIGABIT EASY DESKTOP SWITCH
D-Link GO-SW-5G 5-Port Gigabit Easy Desktop SwitchOVERVIEWThe 5-Port Gigabit Easy Desktop Switch (GO-SW-5G) offers an economical way for SOHO and small to medium businesses benefit from the increased bandwidth of Gigabit Ethernet. It provides Gigabit...
Zobrazit více
0% (0 hodnocení)
385 Kč
vložit do košíku
Skladem na prodejně
| katalogové číslo: | at_51202581 |
| EAN: | 790069365676 |
| výrobce: | DLINK |
| cena bez DPH: | 318,18 Kč |
| cena vč. DPH: | 385 Kč |
popis
parametry
soubory a odkazy
diskuze

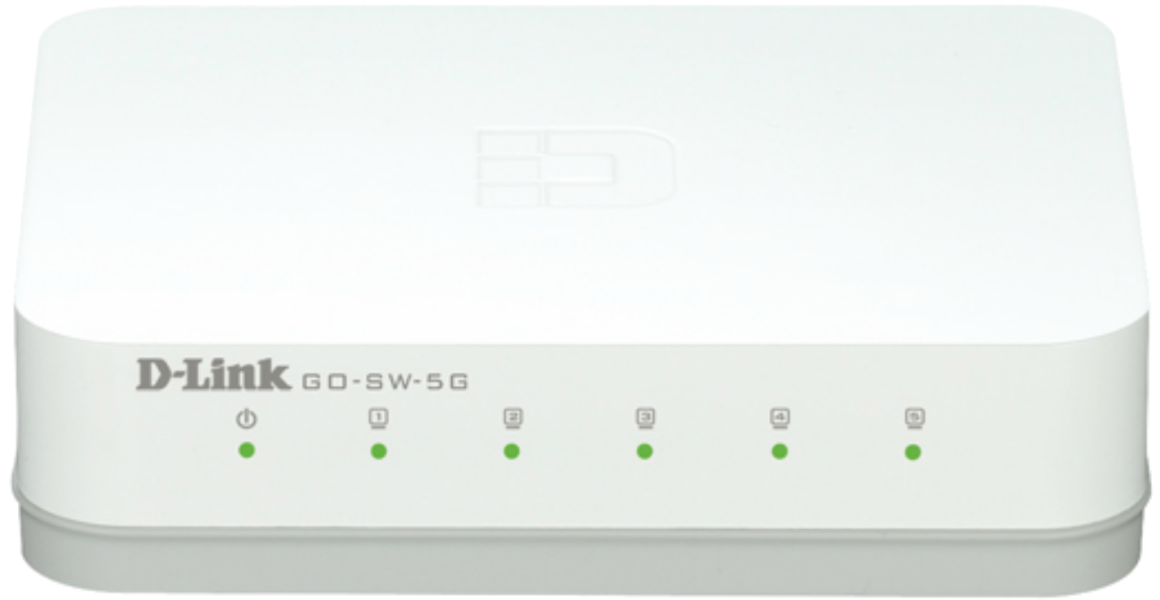

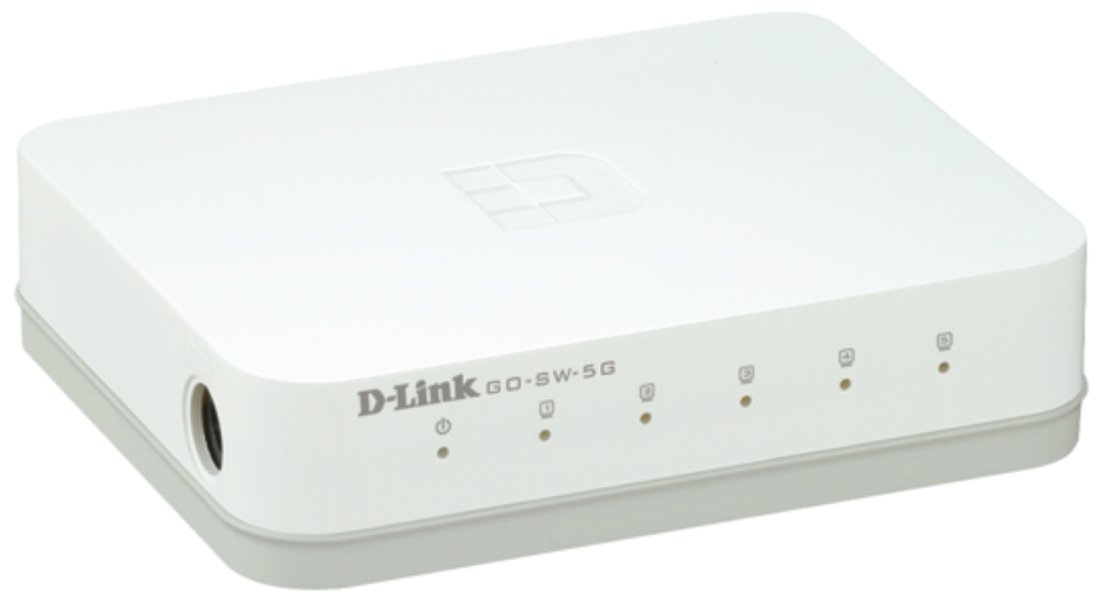

D-Link GO-SW-5G 5-Port Gigabit Easy Desktop Switch
OVERVIEW
The 5-Port Gigabit Easy Desktop Switch (GO-SW-5G) offers an economical way for SOHO and small to medium businesses benefit from the increased bandwidth of Gigabit Ethernet. It provides Gigabit ports for easy expansion of your network and a quick way to upgrade your network to Gigabit connectivity.
SPECIFICATIONS
Switching Fabric
• 10Gbps
Standards
• IEEE 802.3 10BASE-T Ethernet (twisted-pair copper)
• IEEE 802.3u 100BASE-TX Fast Ethernet (twisted-pair copper)
• IEEE 802.3ab 1000BASE-T Gigabit Ethernet (twistedpair copper)
• ANSI/IEEE 802.3 NWay auto-negotiation
• IEEE 802.3x Flow Control
• IEEE 802.3az Energy-Efficient Ethernet (EEE)
Protocol
• CSMA/CD
Data Transfer Rates
• Ethernet:
• 10 Mbps (half duplex), 20 Mbps (full duplex)
• Fast Ethernet:
• 100 Mbps (half duplex), 200 Mbps (full duplex)
• Gigabit Ethernet:
• 2000 Mbps (full duplex)
Topology
• Star
Network Cables
• 10BASE-T:
• UTP CAT 3, 4, 5/5e (100 m max.)
• EIA/TIA-586 100-ohm STP (100 m max.)
• 100BASE-TX, 1000BASE-T:
• UTP CAT 5/5e (100 m max.)
• EIA/TIA-568 100-ohm STP (100 m max.)
Media Interface Exchange
• Auto MDI/MDIX adjustment for all ports
LED Indicators
• Per port: Link/Activity/Speed
• Per device: Power
Transmission Method
• Store-and-forward
MAC Address Table
• 2K
MAC Address Learning
• Automatic update
Packet Filtering/Forwarding Rates
• Ethernet: 14,880 pps per port
• Fast Ethernet: 148,800 pps per port
• Gigabit Ethernet: 1,488,000 pps per port
RAM Buffer
• 128KB per device
Jumbo Frames
• 9,216 Bytes
DC Input
• External 5 V/1 A Level "V" Power Adapter
Power Consumption
• DC input: 1.67 watts
• AC input: 2.7 watts
MTBF
• 815,700 hours
Operating Temperature
• 0 to 40 °C
Storage Temperature
• -10 to 70 °C
Operating Humidity
• 10% to 90% RH non-condensing
Storage Humidity
• 5% to 90% RH non-condensing
Dimensions
• 97 x 79 x 28 mm
Weight
• 105 grams
Certifications
• FCC Class B
• ICES-003 Class B
• CE Class B
• C-Tick Class B
• VCCI Class B
• cUL/UL
• CCC
• Anatel
• LVD
OVERVIEW
The 5-Port Gigabit Easy Desktop Switch (GO-SW-5G) offers an economical way for SOHO and small to medium businesses benefit from the increased bandwidth of Gigabit Ethernet. It provides Gigabit ports for easy expansion of your network and a quick way to upgrade your network to Gigabit connectivity.
SPECIFICATIONS
Switching Fabric
• 10Gbps
Standards
• IEEE 802.3 10BASE-T Ethernet (twisted-pair copper)
• IEEE 802.3u 100BASE-TX Fast Ethernet (twisted-pair copper)
• IEEE 802.3ab 1000BASE-T Gigabit Ethernet (twistedpair copper)
• ANSI/IEEE 802.3 NWay auto-negotiation
• IEEE 802.3x Flow Control
• IEEE 802.3az Energy-Efficient Ethernet (EEE)
Protocol
• CSMA/CD
Data Transfer Rates
• Ethernet:
• 10 Mbps (half duplex), 20 Mbps (full duplex)
• Fast Ethernet:
• 100 Mbps (half duplex), 200 Mbps (full duplex)
• Gigabit Ethernet:
• 2000 Mbps (full duplex)
Topology
• Star
Network Cables
• 10BASE-T:
• UTP CAT 3, 4, 5/5e (100 m max.)
• EIA/TIA-586 100-ohm STP (100 m max.)
• 100BASE-TX, 1000BASE-T:
• UTP CAT 5/5e (100 m max.)
• EIA/TIA-568 100-ohm STP (100 m max.)
Media Interface Exchange
• Auto MDI/MDIX adjustment for all ports
LED Indicators
• Per port: Link/Activity/Speed
• Per device: Power
Transmission Method
• Store-and-forward
MAC Address Table
• 2K
MAC Address Learning
• Automatic update
Packet Filtering/Forwarding Rates
• Ethernet: 14,880 pps per port
• Fast Ethernet: 148,800 pps per port
• Gigabit Ethernet: 1,488,000 pps per port
RAM Buffer
• 128KB per device
Jumbo Frames
• 9,216 Bytes
DC Input
• External 5 V/1 A Level "V" Power Adapter
Power Consumption
• DC input: 1.67 watts
• AC input: 2.7 watts
MTBF
• 815,700 hours
Operating Temperature
• 0 to 40 °C
Storage Temperature
• -10 to 70 °C
Operating Humidity
• 10% to 90% RH non-condensing
Storage Humidity
• 5% to 90% RH non-condensing
Dimensions
• 97 x 79 x 28 mm
Weight
• 105 grams
Certifications
• FCC Class B
• ICES-003 Class B
• CE Class B
• C-Tick Class B
• VCCI Class B
• cUL/UL
• CCC
• Anatel
• LVD
parametry
| Rychlost LAN max. | 1000 |
|---|---|
| Obsahuje switch | 1 |
| Provedení switche | Desktop |
| Počet LAN portů | 5 |
| Obsahuje switch | 1 |
|---|---|
| Rychlost LAN max. | 1000 |
| Počet LAN portů | 5 |
| Provedení switche | Desktop |
